AUDUBON CONVEYOR BELTS
SUGGESTED FRICTION DRIVE ARRANGEMENTS
AUDUBON Sales & Service
"Conveyor Belt Manufacturing Since 1884"
850 Pennsylvania Blvd
Feasterville, Pa  19053
PH: (800) 523-0169  toll free in us only
PH: (215) 364-5541
FX:  (215) 364-5538

www.meshbelt.com
Note these are only Audubon Engineers recommended suggestions.  We do not manufacture or Sell these drives.

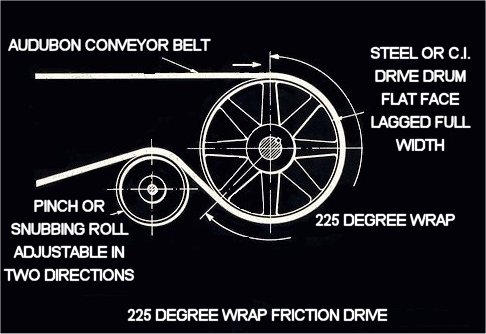

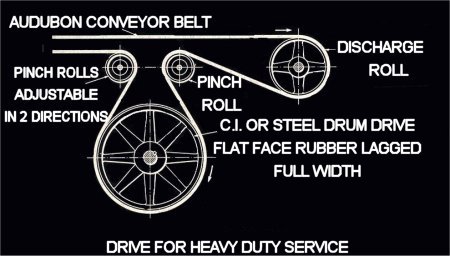

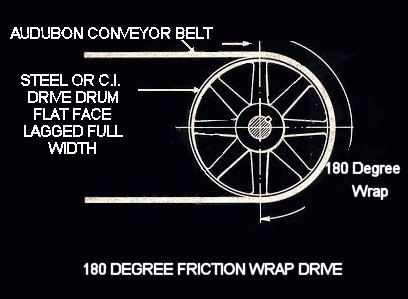

All  steel or C.I. Traction Drive Drums should be flat faced (no crown) and lagged with rubber the full width if possible.  Drive Drums should always be as large as possible to insure maximum traction.
