BRUSH STYLE

CONVEYOR BELT CLEANER

For Belt Widths from 6" to 108" Wide

Brush:  10" diameter brush, disposable brush, 3" bristle trim.

Bristles available in 3 diameters:

- .014" diameter bristles (recommended for light carry such as cereal, cement dust, plywood dust)

- .028" diameter bristles (recommended for dry & wet medium product carry  such as ore, feed, foods, sand)

- .040" diameter bristles (recommend for wet medium to heavy products and dry heavy product carry such as feed, ore, singer, sugar)



When ordering advise Belt Width and Bristle Size

Motor:  230/460 volts, 1200 rpm

For Belt Width    6" -  42" wide   1 Horsepower,   1  7/16" diameter shaft

For Belt  Width 48" - 108" wide   2 Horsepower,  1 15/16" diameter shaft

Variable Brush Speed Adjustments: 230, 415 or 600 RPM

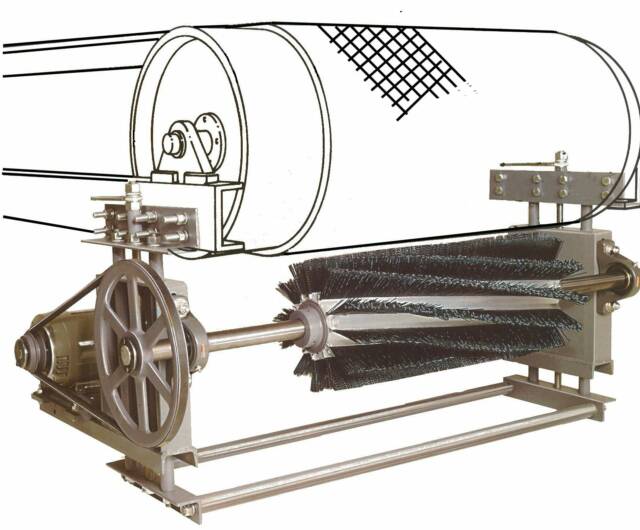

Drive Assembly can be mounted on either side of unit.

Brush is disposable and interchangeable for easy replacement

Brush rotates against or in opposition to the conveyor belt travel.

Helix design allows for constant belt contact resulting in smooth, quiet cleaning.

Flexible bristles provides thorough cleaning

Open brush construction, self cleaning, will NOT load.

Helically formed rugged built brush withstands hard use.

Fast Lead Times

Our Brush Cleaner reduces downtime and clean up expenses, stops wear on conveyor belts and return rolls

caused by carryover.

AUDUBON

AUDUBON Sales & Service

"Conveyor Belt Manufacturing Since 1884"

850 Pennsylvania Blvd

Feasterville, PA 19053  US

(215) 364-5451 PH    (215) 364-1783 FX

Sales &

Service

Helical Design and Open Face

prevent it from Loading.

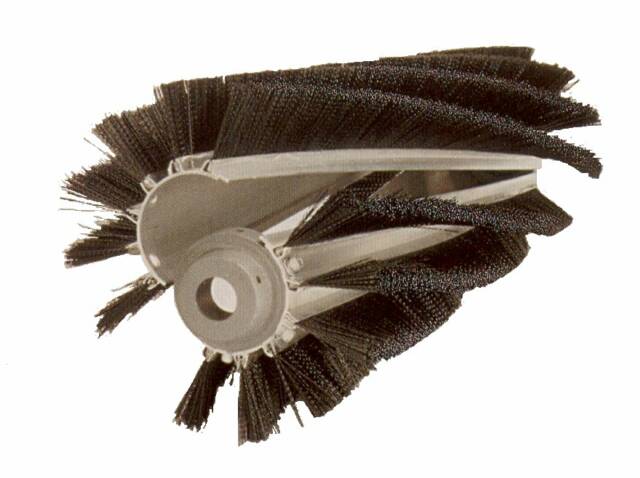

Standard Brush has 12 bristle rows, 10" diameter, 3" bristle length, helical design.
