Insert straight rod through double strand, right and left hand spirals.  Weld or knuckle ends of rod.
                Balance Weave Mesh

Insert crimped rod through single strand, right and left hand spirals. Weld or knuckle ends of rod.

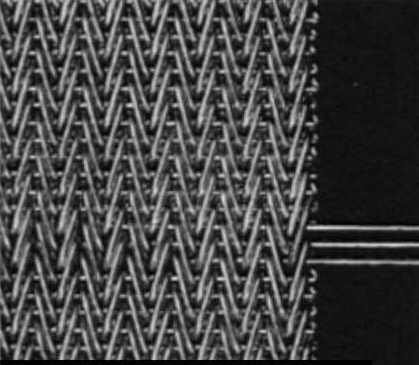

              Cordweave Mesh

Insert 3 or 4 rods, each rod connecting
(2) sets of the nested spirals.  Weld ends of rods to spirals.

              Cordweave Mesh

Insert 3 or 4 rods, each rod connecting
(2) sets of the nested spirals.  Weld ends of rods to spirals.
                Balance Weave Mesh

Insert crimped rod through single strand, right and left hand spirals. Weld or knuckle ends of rod.
">
">
">
">
">
">
">
">
">
">
">
">

Insert straight rod through double strand, right and left hand spirals.  Weld or knuckle ends of rod.
Pictures shown are for connecting ends of mesh conveyor belts or splicing into an existing mesh belt of the same specification.

To disconnect the belt, reverse the procedure.
