Audubon Universal Weave
Specifications
     Series 50
U-27-21-9/10
U-18-7 1/2-250
U-24-10-8/9
U-42-32-12/14
U-46-25-12/14
U-46-20-11/13
U-39-21-10/12
U-29-15-9/10
U-21-12-6/8
U-24-10-6/8
U-55-32-12/16
U-60-45-16
U-102-74-18/20
U-156-93-19/23
U-240-138-.03028

  Series 70
U-24-18-14/16
U-24-18-12/14
U-18-10-9/10
U-18-11-8/9
U-48-26-16/18
U-36-23-13/16
U-36-23-14/16
U-24-14-10/12
U-30-18-11/12
U-36-18-11/12
U-36-23-12/14
U-24-14-9/11
U-30-18-10/11
U-36-18-10/11
U-36-32-12/13
.148 - .135
.250 - .235
.162 - .148
.105 - .080
.105 - .080
.120 - .092
.135 - .105
.148 - .135
.192 - .162
.192 - .162
.105 - .063
.063
.047 - .035
.041 - .025
.030 - .016


.080 - .063
.105 - .080
.148 - .135
.162 - .148
.063 - .047
.092 - .063
.080 - .063
.135 - .105
.120 - .105
.120 - .105
.105 - .080
.148 - .120
.135 - .120
.135 - .120
.105 - .092

6.43
9.25
5.00
3.80
3.65
4.50
5.20
6.00
6.25
6.00
2.90
3.10
1.80
1.50
1.10


1.20
2.00
3.20
3.65
1.15
1.80
1.75
2.95
3.55
4.50
2.85
3.75
4.10
5.30
3.50

          Mesh                        Wire                   Weight/Sq ft
     Specifications                 Dia.                         (lbs)
Audubon......the Leading Conveyor Belt Manufacturer
Audubon......the Leading Conveyor Belt Manufacturer

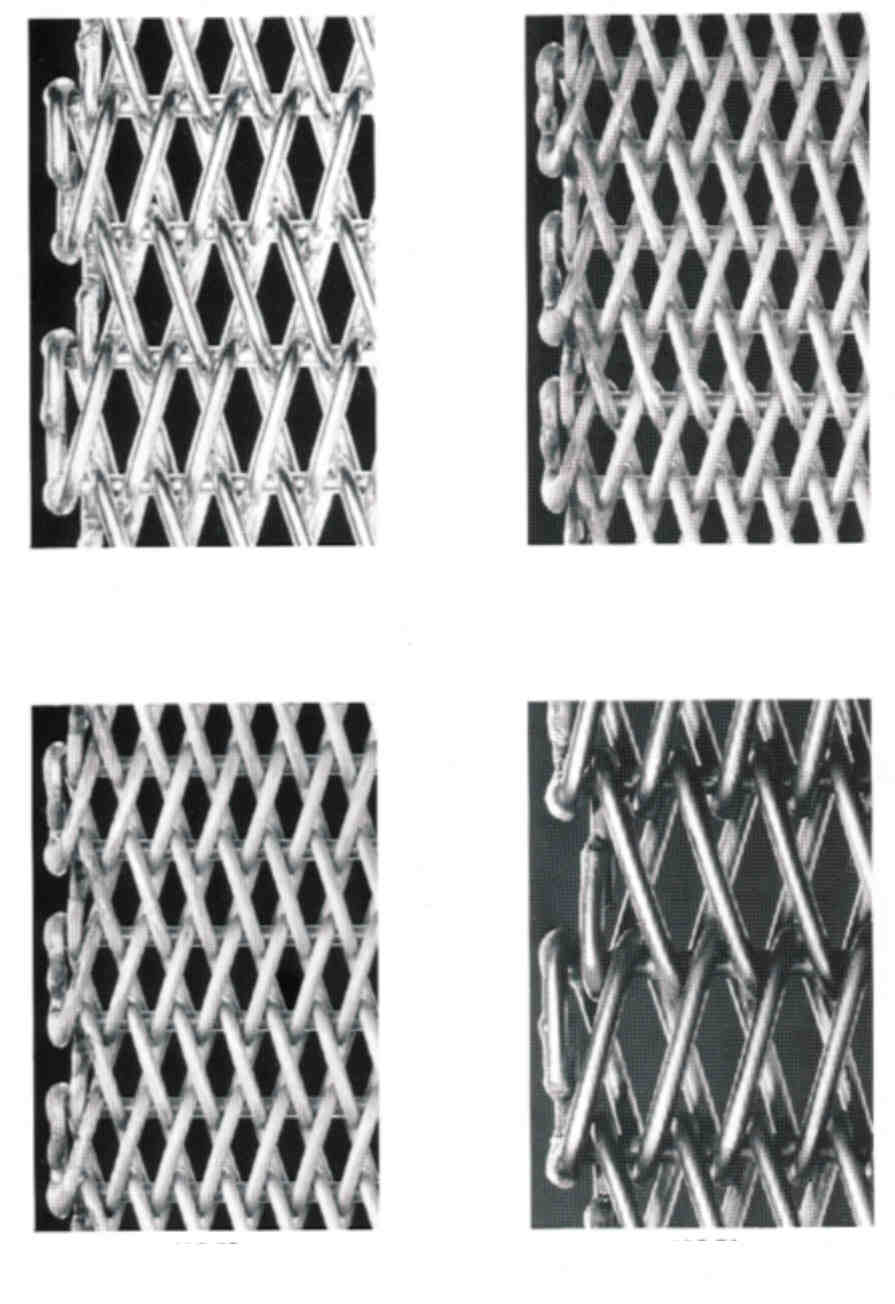

U-39-21-10/12
U-24-10-6/8
U-29-15-9/10
U-24-14-9/11
5/16 x 7/16
7/16 x 1 1/4
3/8   x 1
3/16 x 11/32
3/16 x 3/8
5/32 x 3/8
3/16 x 7/16
1/4 x 5/8
11/32 x 3/4
5/16 x 1
5/32 x 9/32
1/8 x 7/32
1/16 x 3/32
3/64 x 1/16
1/32  x1/16


3/8 x 1/2
11/32 x 1/2
1/2 x 1
7/16 x 1
3/16 x 3/8
7/32 x 7/16
7/32 x 7/16
3/8 x 3/4
5/16 x 9/16
7/32 x 9/16
7/32 x 3/8
3/8 x 3/4
9/32 x 9/16
7/32 x 9/16
7/32 x 3/8


Approx
Openings
